KM30Y-5 CNC lathe

5-axis CNC lathe high performance composite turning and engraving process INQUIRY

●Suitable for machining small parts with complex process :vane,inclined hole, jewelry.


●Equip with big swing angle power head , speed 60000rpm.


●13-station tool and tool setting gauge let machine high effective work.

PRODUCT INTRODUCTION
  • FEATURES
  • TECHNICAL SPECIFICATION
  • CONFIGURATION
  • SAMPLE MACHINING

A-axis swing angle 0-125° for milling,enabling high-speed and high-precision positioning


A-axis swing angle 0-125° for milling,enabling high-speed and high-precision positioning

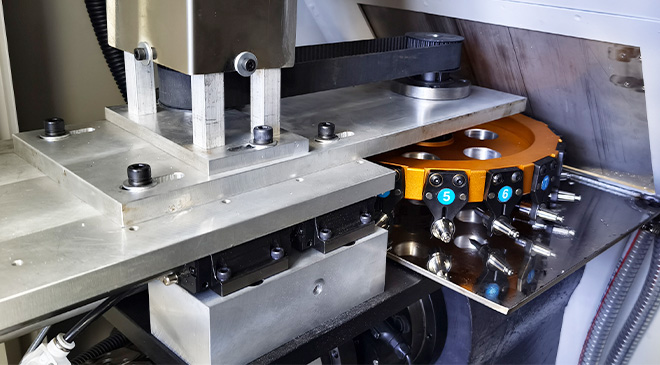

Tool magazine can install 13pcs tools to change

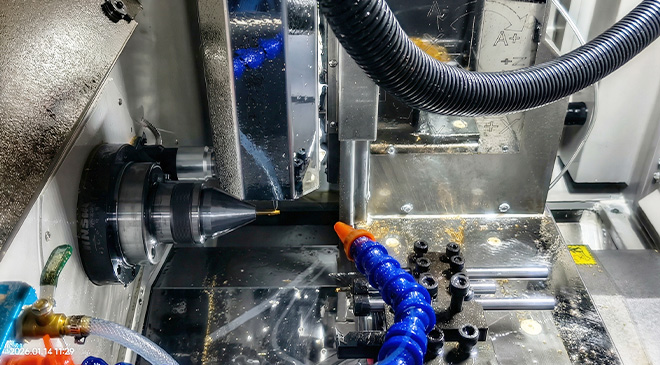

Z axis tool post install drilling bit and turning tool


Z axis tool post install drilling bit and turning tool

Customized fixture and  tool setting gauge


Customized fixture and  tool setting gauge






ModelKM30Y-5
C axisMax. machining diameterΦ31mm
Max. machining length130mm
Spindle speed50-6000 r/min
Spindle motor3.7kW
A axisSpindle speed50-60000 r/min
FeedX/Y/Z travel600/200/260mm
A swing angle0-125°
X/Y/Z/C/A feed rate20000/12000/20000/6000/4000 mm/min
Tool postTurning tool 3 pcs
Front face drilling tool3 pcs
Tools size16×16mm
Tool magazines13-station
Milling tool13 pcs
Live tool power2.5kw
Live tool speed30000 r/min
Live tool collet sizeER11
Live drilling sizeΦ6mm
PowerVoltage380V/50HZ/3PH
Rated power5.5kw
OthersMachine size1500×1250×1800mm
Machine weight1200kg


ModelKM30Y-5
C axisMax. machining diameterΦ31mm
Max. machining length130mm
Spindle speed50-6000 r/min
Spindle motor3.7kW
A axisSpindle speed50-60000 r/min
FeedX/Y/Z travel600/200/260mm
A swing angle0-125°
X/Y/Z/C/A feed rate20000/12000/20000/6000/4000 mm/min
Tool postTurning tool 3 pcs
Front face drilling tool3 pcs
Tools size16×16mm
Tool magazines13-station
Milling tool13 pcs
Live tool power2.5kw
Live tool speed30000 r/min
Live tool collet sizeER11
Live drilling sizeΦ6mm
PowerVoltage380V/50HZ/3PH
Rated power5.5kw
OthersMachine size1500×1250×1800mm
Machine weight1200kg


SYNTEC 220TB-5 control system
Yaskawa X/Z axis servo motor
A/C axis Motor spindle
Air pressure collet
13 station tool magazine
Cooling pump
Automatic lubrication
Chip car

Sample 1Sample 2Sample 3Sample 4
