●Machining dia.1-7mm,length 190mm small workpiece.

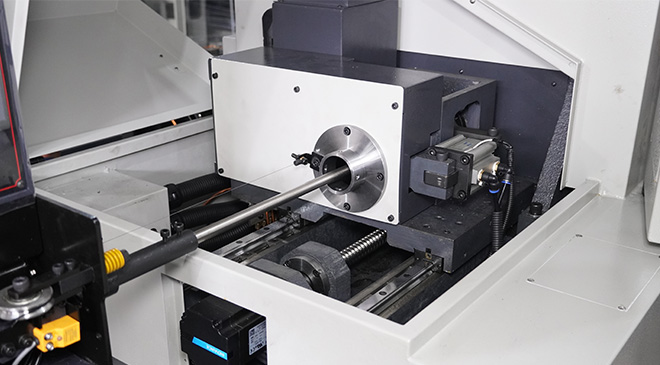

●The machine can make small parts with guide bush.
● 2pcs live tool on Y axis to drilling /tapping/milling.
PRODUCT INTRODUCTION
- FEATURES
- TECHNICAL SPECIFICATION
- CONFIGURATION
- SAMPLE MACHINING
Controllable linear axis X/Z/Y |

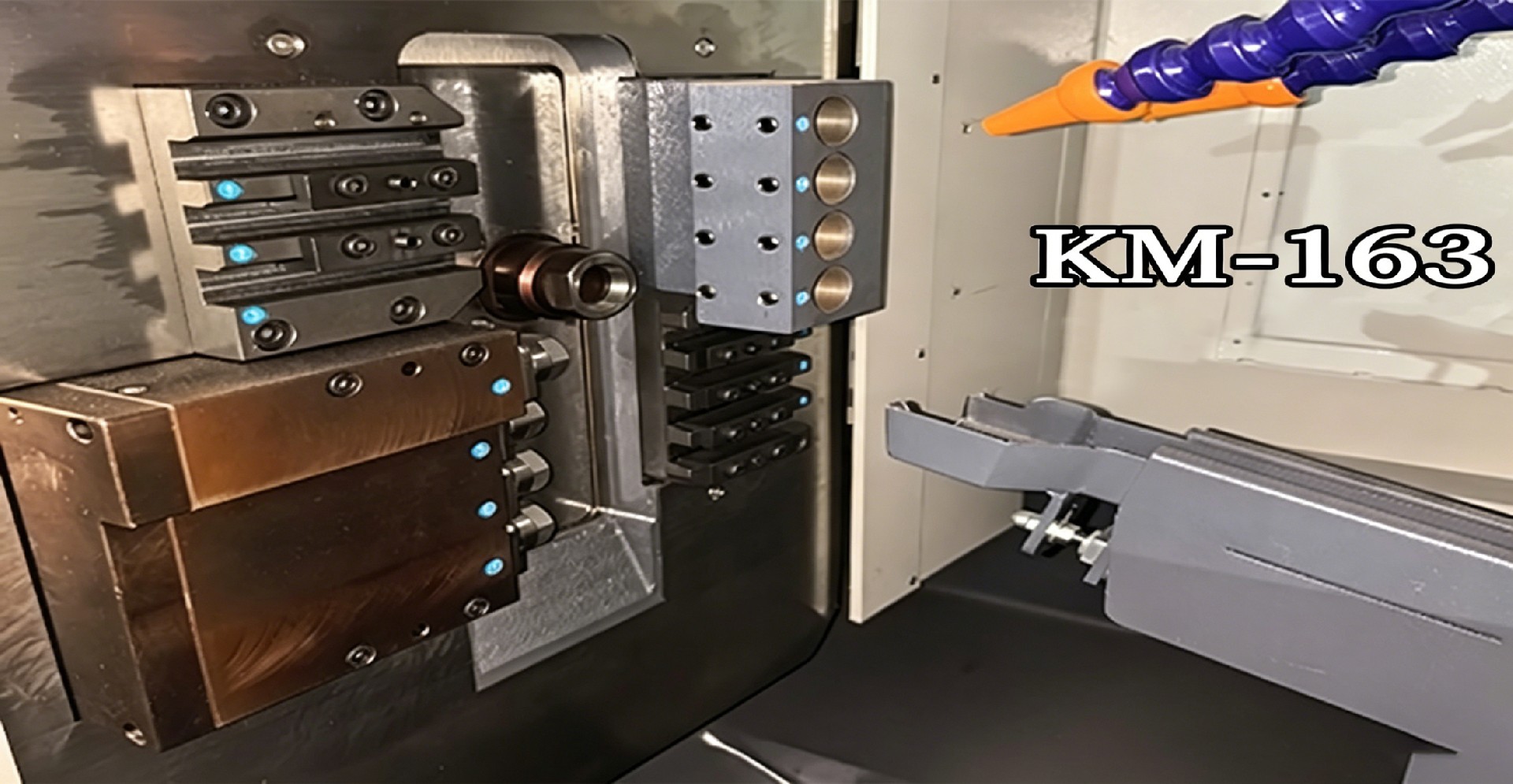

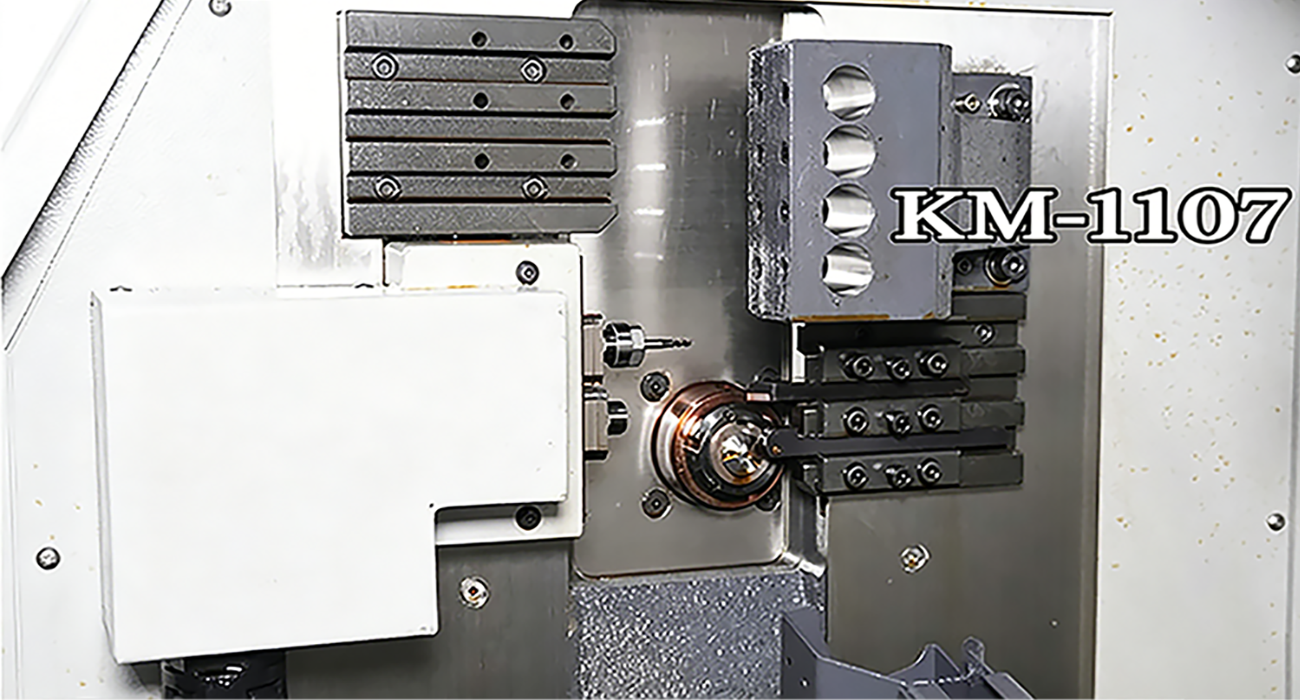

2 pcs live tool on Y axis/6pcs turning tool/4 pcs front drilling tool |
4pcs live tool on Y axis/6pcs turning tool/4pcs front drilling tool |

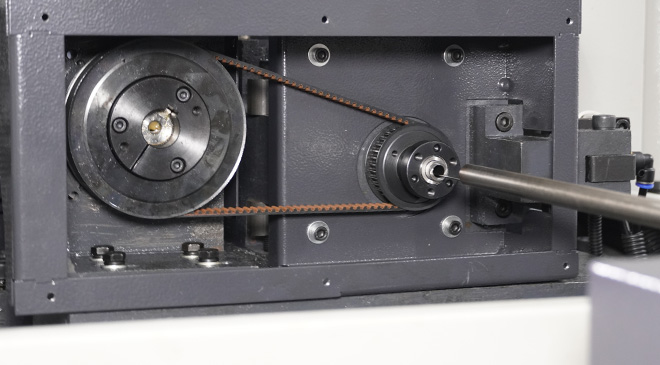

Sliding headstock move on Z axis |

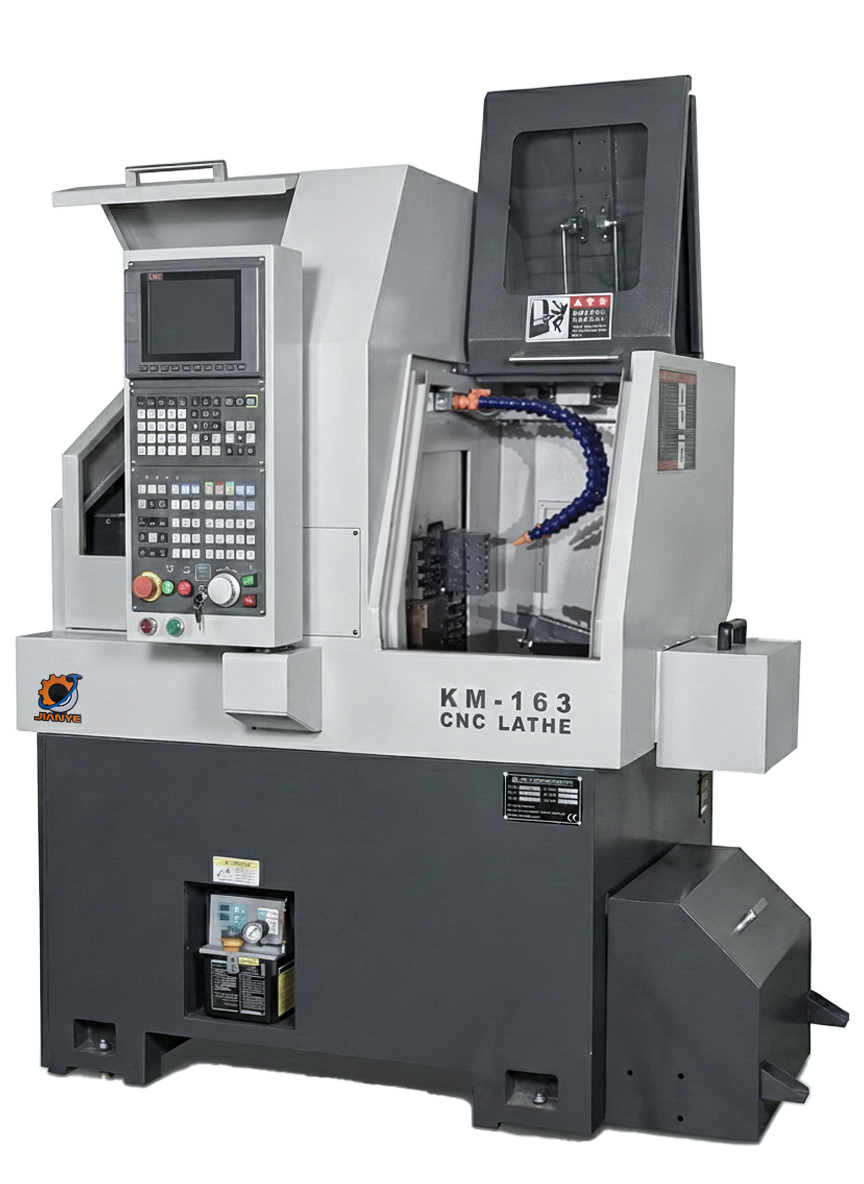

| Item | KM-1107 | KM-163 | |
| Control system | LNC T5800 | LNC T5800/SYNTEC 22TA | |
| Spindle | Max. machining diameter | Ф7mm | Φ16mm |
| Max. turning length(one process) | 190mm | 180mm | |
| Spindle speed | 50-6000r/min | 50-5000 | |
| Motor power | 1.5kW | 2kW | |
| Feed | X axis travel | 85mm | 85mm |
| Y axis travel | 170mm | 220mm | |
| Z axis travel | 230mm | 180mm | |
| X axis rapid feed speed | 18000mm/min | 18000mm/min | |
| Y axis rapid feed speed | 18000mm/min | 18000mm/min | |
| Z axis rapid feed speed | 18000mm/min | 18000mm/min | |
| Tool | Rows Tool | 12pcs | 15pcs |
| Turning tool | 6pcs | 7pcs | |
| Tool size | 8×8mm | 12×12mm | |
| Front drilling tool | 4pcs | 4pcs | |
| Number of live tool | 2pcs | 4pcs | |
| Live tool motor | 0.4kW | 0.75kW | |
| Live tool speed | 5000-8000r/min | 1000-5000r/min | |
| Live tool chuck size | ER11 | ER16 | |
| Live tool drilling size | Ф6mm | Ф6mm | |
| Live tool tapping size | M6 | M6 | |
| Power | Rated voltage | 3 phase AC380V | 3 phase AC380V |
| Rated frequency | 50Hz | 50Hz | |
| Machine dimension | L×W×H | 1500×1100×1800mm | 1500×1100×1800mm |
| Weight (N.W./G.W.) | 1000kg | 1000kg | |
| Item | KM-1107 | KM-163 | |
| Control system | LNC T5800 | LNC T5800/SYNTEC 22TA | |
| Spindle | Max. machining diameter | Ф7mm | Φ16mm |
| Max. turning length(one process) | 190mm | 180mm | |
| Spindle speed | 50-6000r/min | 50-5000 | |
| Motor power | 1.5kW | 2kW | |
| Feed | X axis travel | 85mm | 85mm |
| Y axis travel | 170mm | 220mm | |
| Z axis travel | 230mm | 180mm | |
| X axis rapid feed speed | 18000mm/min | 18000mm/min | |
| Y axis rapid feed speed | 18000mm/min | 18000mm/min | |
| Z axis rapid feed speed | 18000mm/min | 18000mm/min | |
| Tool | Rows Tool | 12pcs | 15pcs |
| Turning tool | 6pcs | 7pcs | |
| Tool size | 8×8mm | 12×12mm | |
| Front drilling tool | 4pcs | 4pcs | |
| Number of live tool | 2pcs | 4pcs | |
| Live tool motor | 0.4kW | 0.75kW | |
| Live tool speed | 5000-8000r/min | 1000-5000r/min | |
| Live tool chuck size | ER11 | ER16 | |
| Live tool drilling size | Ф6mm | Ф6mm | |
| Live tool tapping size | M6 | M6 | |
| Power | Rated voltage | 3 phase AC380V | 3 phase AC380V |
| Rated frequency | 50Hz | 50Hz | |
| Machine dimension | L×W×H | 1500×1100×1800mm | 1500×1100×1800mm |
| Weight (N.W./G.W.) | 1000kg | 1000kg | |
Standard Configuration:
Control system: LNC T6860
Spindle servo motor
Air pressure collet
Cooling pump
Automatic lubrication
Chip car
Two live tool on Y axis
Workpiece receiver
2pcs/4pcs live tool onYaxis
Options:
Control system: SYNTEC 22TB
Control system: LNC T6860
Spindle servo motor
Air pressure collet
Cooling pump
Automatic lubrication
Chip car
Two live tool on Y axis
Workpiece receiver
2pcs/4pcs live tool onYaxis
Options:
Control system: SYNTEC 22TB
