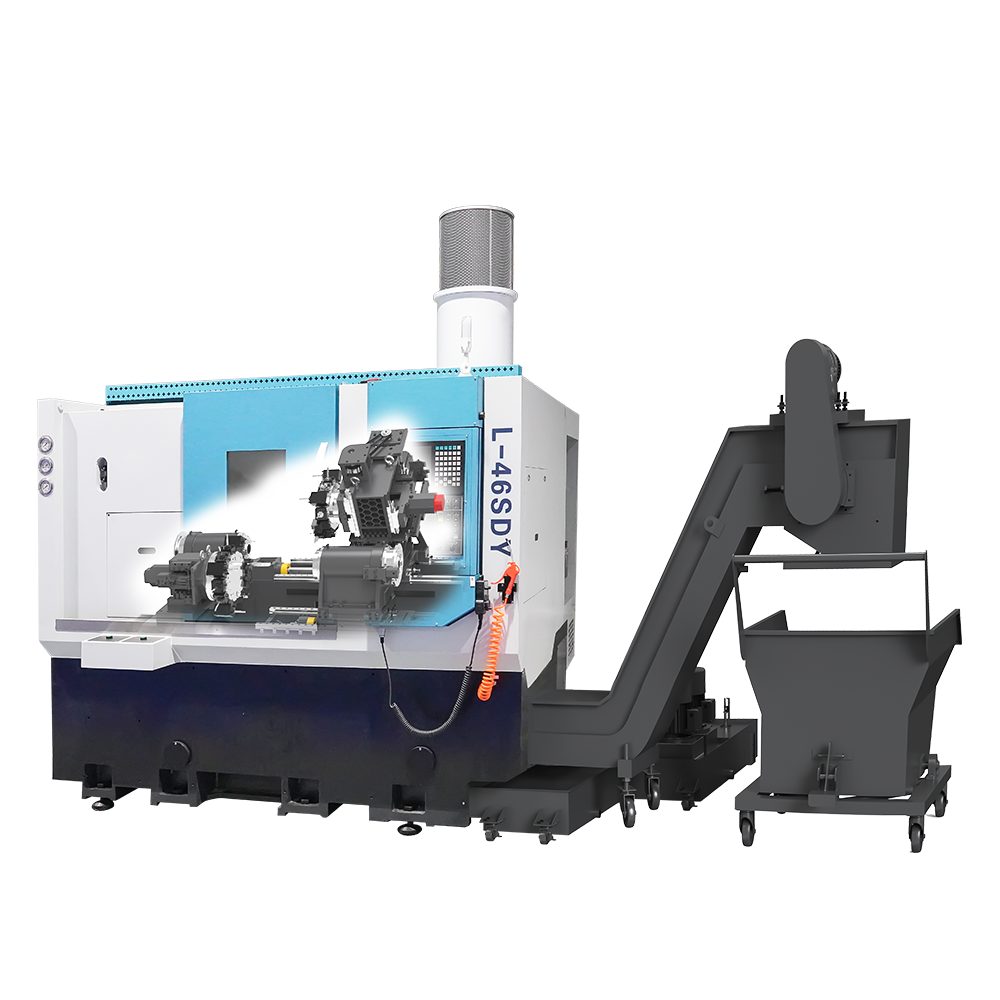

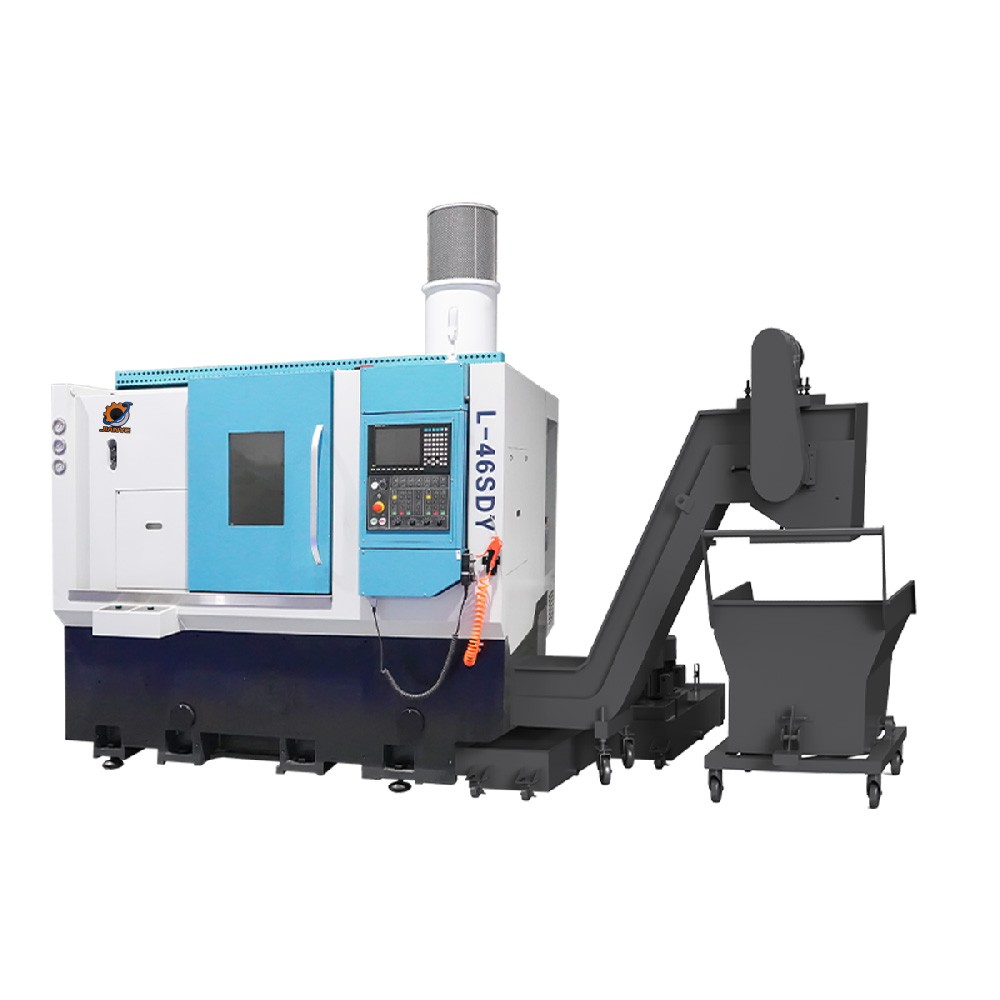

L-46SDY CNC Horizontal Turning & Milling Machine

-Dual spindle, Dual turret INQUIRY

●Machining Φ20-Φ130mm, length 2.5-130mm workpiece.

●Perfect rigidity and stability.

●The main machine adopts the whole one slant one flat bed structure.

●Permanent magnet synchronous electric spindle.

●Complete various machining processes in single clamping, allowing for the simultaneous machining of both sides of the workpiece.

PRODUCT INTRODUCTION
  • FEATURES
  • TECHNICAL SPECIFICATION
  • CONFIGURATION
  • SAMPLE MACHINING



Motorized spindle, with excellent dynamic performance, high precision and strong rigidity.

Motorized spindle, with excellent dynamic performance, high precision and strong rigidity.


Full closed-loop control, with dual spindle, dual turret, gratingruler, and dual channel design, which can easily carry various powerheadsand turning tools.

Full closed-loop control, with dual spindle, dual turret, gratingruler, and dual channel design, which can easily carry various powerheadsand turning tools.


All castings are subjected to long-term natural aging treatment, ensure long term stable accuracy.

All castings are subjected to long-term natural aging treatment, ensure long term stable accuracy.


Adopt imported φ32 (C3) large diameter high-speed silent ball screw, stable accuracy, adopt roller guide way, more rigidity.Adopt imported φ32 (C3) large diameter high-speed silent ball screw, stable accuracy, adopt roller guide way, more rigidity.








Technical Parameter


ItemNameUnitL-46SDY
CapacityMax.swing diameter over bedmmΦ570
Max. swing diameter on the saddlemmΦ320
Max.machining diametermmΦ130
Max.machining lengthmm130
TravelX1/X2 axis travelmm200/300
Y1 axis travelmm±50
Z1/Z2 axis travelmm320/300
Main &Sub
motor spindle
Chuck sizeinch6''
Max.speedrpm6000
Spindle nose/A2-5
Motor spindle powerkw11.7/17.5
Spindle through-hole sizemmΦ57
Max.bar diametermmΦ45
Milling spindleMax. speedrpm4000
Drill capacitymmΦ16×1.5
Tapping capacitymmM12×1.75
Milling spindle motorkw2.3 (SYNTEC)
Tool turret/BMT45Y + BMT45
Feed speedX/Z axis rapid speedmm/min18000
Y axis rapid speedmm/min10000
MotorSpindle motorkw>11
Cooling pump motorkw0.75
CoolingWater tank capacityL130
Electricity/GasPower capacityKva/kw64/44.75
Air sourceL/min0.5Mpa/100
Size/WeightDistance from spindel center to groundmm1070
Machine dimension (L×W×H)mm2410×2210×2060
Weightkg5000
Parameters will be adjusted according to machine configuration.


Technical Parameter


ItemNameUnitL-46SDY
CapacityMax.swing diameter over bedmmΦ570
Max. swing diameter on the saddlemmΦ320
Max.machining diametermmΦ130
Max.machining lengthmm130
TravelX1/X2 axis travelmm200/300
Y1 axis travelmm±50
Z1/Z2 axis travelmm320/300
Main &Sub
motor spindle
Chuck sizeinch6''
Max.speedrpm6000
Spindle nose/A2-5
Motor spindle powerkw11.7/17.5
Spindle through-hole sizemmΦ57
Max.bar diametermmΦ45
Milling spindleMax. speedrpm4000
Drill capacitymmΦ16×1.5
Tapping capacitymmM12×1.75
Milling spindle motorkw2.3 (SYNTEC)
Tool turret/BMT45Y + BMT45
Feed speedX/Z axis rapid speedmm/min18000
Y axis rapid speedmm/min10000
MotorSpindle motorkw>11
Cooling pump motorkw0.75
CoolingWater tank capacityL130
Electricity/GasPower capacityKva/kw64/44.75
Air sourceL/min0.5Mpa/100
Size/WeightDistance from spindel center to groundmm1070
Machine dimension (L×W×H)mm2410×2210×2060
Weightkg5000
Parameters will be adjusted according to machine configuration.


Standard configuration:
SYNTEC/FANUC control system
Motorized spindle
Hollow hydraulic 3-jaw chuck
12-station power turret × 2
Cooling system
Cabinet heat exchanger
Automatic lubrication system

Optional configuration:
Automatic bar feeder
Automatic chip conveyor
High pressure water pump
Oil mist collector
Oil-water separator
Autmatic tool setting gauge
Parts receiver

Sample 1Sample 2Sample 3Sample 4
