The machine design for use in automative industry ,precision component manufacturing.

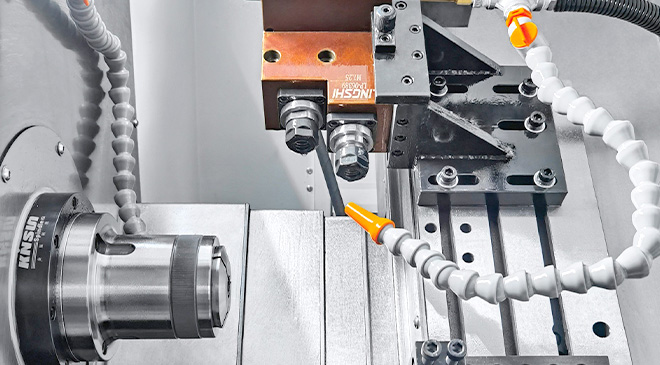

L-P30G High precision CNC Horizontal Lathe
INQUIRY ●Suitable for Φ20~Φ45mm workpiece. Material: brass, stainless steel, aluminium and others.
●Main spindle with high-precision, characterized by low noise, high speed, and long service life.The spindle runout is within 0.002mm.
●The linear guide rails are of high precision, providing excellenpositioning accuracy and dynamic performance.
●The rapidtraverse speed can reach 30m/min, with a repeat positioningaccuracy of up to 0.002mm.
High performance servo motor drive Spindle speed: 6000RPM |
Can be extended the live tools |
Flat bed design:L-P20G, L-P30G Integrated bed design: L-P36G, L-P46G Dovetail slot / T-slot row knife capacity: 6T |
Spindle type: L-P20G/L-P30G: A2-4 L-P26G/L-P46G: A2-5 |
| Category | Name | L-P20G | L-P30G | L-P36G | L-P46G |
| Machining range | Maximum swing diameter on the bed(mm) | Φ200 | Φ200 | Φ480 | Φ480 |
| Maximum machining diameter (shaft/disc)(mm) | Φ70/Φ100 | Φ70/Φ100 | Φ100/Φ450 | Φ100/Φ450 | |
| Maximum machining length(mm) | 250 | 250 | 400 | 400 | |
| Maximum bar diameter(mm) | Φ20 | Φ30 | Φ35 | Φ45 | |
| Travel | X-axis travel(mm) | 300 | 300 | 450 | 450 |
| Y-axis travel(mm) | / | / | / | / | |
| Z-axis travel(mm) | 300 | 300 | 400 | 400 | |
| Spindle | Output power(kw) | 5.5 | 5.5 | 5.5/7.5 | 5.5/7.5 |
| Spindle head type | A2-4 | A2-4 | A2-5 | A2-5 | |
| Spindle through-hole diameter(mm) | Φ46 | Φ46 | Φ57 | Φ57 | |
| Maximum spindle speed(rpm) | 6000 | 6000 | 6000 | 6000 | |
| Tool turret | Turret type | Dovetail slot cutter | Dovetail slot cutter | T-shaped cutter arrangement | T-shaped cutter arrangement |
| Tool capacity | 6 | 6 | 6 | 6 | |
| Turning tool body size(mm) | Φ16 | Φ16 | Φ20 | Φ20 | |
| Maximum boring tool diameter | Φ20 | Φ20 | Φ25 | Φ25 | |
| Rapid traverse speed | X/Z axis(mm/min) | 20/20 | 20/20 | 30/30 | 30/30 |
| Feed rate | Feed speed(mm/min) | 1-8000 | 1-8000 | 1-8000 | 1-8000 |
| Control system | NC Type | FANUC 0I TF(5) SYNTEC 22TA | FANUC 0I TF(5) SYNTEC 22TA | FANUC 0I TF(5) SYNTEC 22TA | FANUC 0I TF(5) SYNTEC 22TA |
| Chip removal type | Manual chip removal | Manual chip removal | Manual chip removal | Manual chip removal |
| Category | Name | L-P20G | L-P30G | L-P36G | L-P46G |
| Machining range | Maximum swing diameter on the bed(mm) | Φ200 | Φ200 | Φ480 | Φ480 |
| Maximum machining diameter (shaft/disc)(mm) | Φ70/Φ100 | Φ70/Φ100 | Φ100/Φ450 | Φ100/Φ450 | |
| Maximum machining length(mm) | 250 | 250 | 400 | 400 | |
| Maximum bar diameter(mm) | Φ20 | Φ30 | Φ35 | Φ45 | |
| Travel | X-axis travel(mm) | 300 | 300 | 450 | 450 |
| Y-axis travel(mm) | / | / | / | / | |
| Z-axis travel(mm) | 300 | 300 | 400 | 400 | |
| Spindle | Output power(kw) | 5.5 | 5.5 | 5.5/7.5 | 5.5/7.5 |
| Spindle head type | A2-4 | A2-4 | A2-5 | A2-5 | |
| Spindle through-hole diameter(mm) | Φ46 | Φ46 | Φ57 | Φ57 | |
| Maximum spindle speed(rpm) | 6000 | 6000 | 6000 | 6000 | |
| Tool turret | Turret type | Dovetail slot cutter | Dovetail slot cutter | T-shaped cutter arrangement | T-shaped cutter arrangement |
| Tool capacity | 6 | 6 | 6 | 6 | |
| Turning tool body size(mm) | Φ16 | Φ16 | Φ20 | Φ20 | |
| Maximum boring tool diameter | Φ20 | Φ20 | Φ25 | Φ25 | |
| Rapid traverse speed | X/Z axis(mm/min) | 20/20 | 20/20 | 30/30 | 30/30 |
| Feed rate | Feed speed(mm/min) | 1-8000 | 1-8000 | 1-8000 | 1-8000 |
| Control system | NC Type | FANUC 0I TF(5) SYNTEC 22TA | FANUC 0I TF(5) SYNTEC 22TA | FANUC 0I TF(5) SYNTEC 22TA | FANUC 0I TF(5) SYNTEC 22TA |
| Chip removal type | Manual chip removal | Manual chip removal | Manual chip removal | Manual chip removal |
