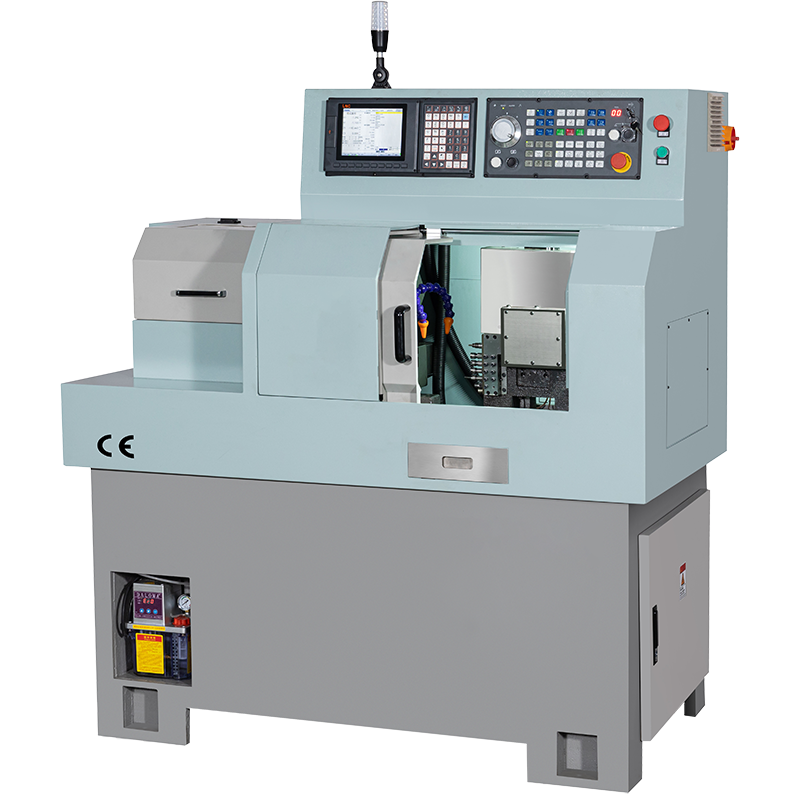

●Can be Dia. 2-25mm part machining small parts, precision 0.01mm.
●Optional power head for milling and drilling on Y axis, bar feeder continuous process.
●Flat bed with gang type tool post, air pressure collet , servo spindle positioning processing.
PRODUCT INTRODUCTION
- FEATURES
- TECHNICAL SPECIFICATION
- CONFIGURATION
- SAMPLE MACHINING

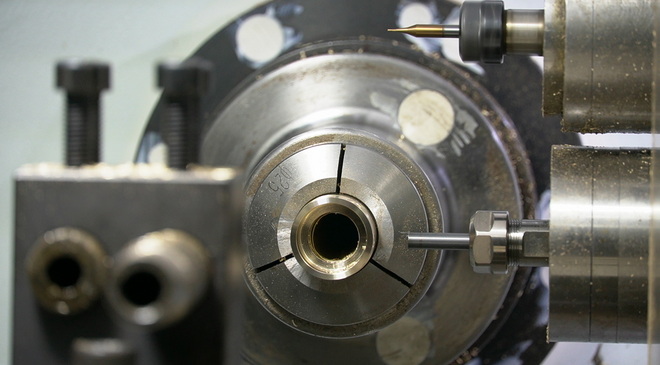

Machining long shaft with center rest |

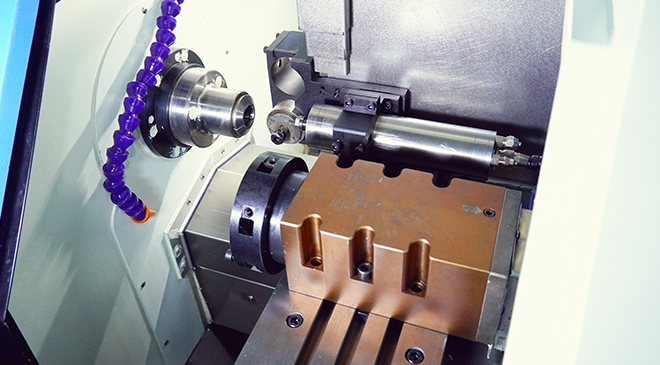

Add live tool (5000rpm) on Z axis |
Two high speed live tools on Y axis and customized fly cutter |
With multiple power cutter heads |
Turning, milling, drilling and tapping can be completed in one process |

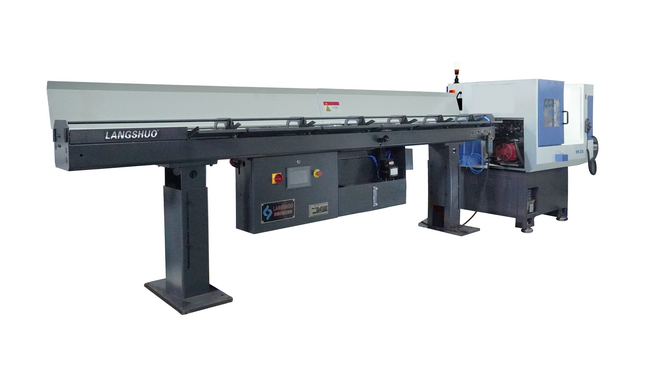

Optional automatic feeder with a maximum feeding length of 3 meters |

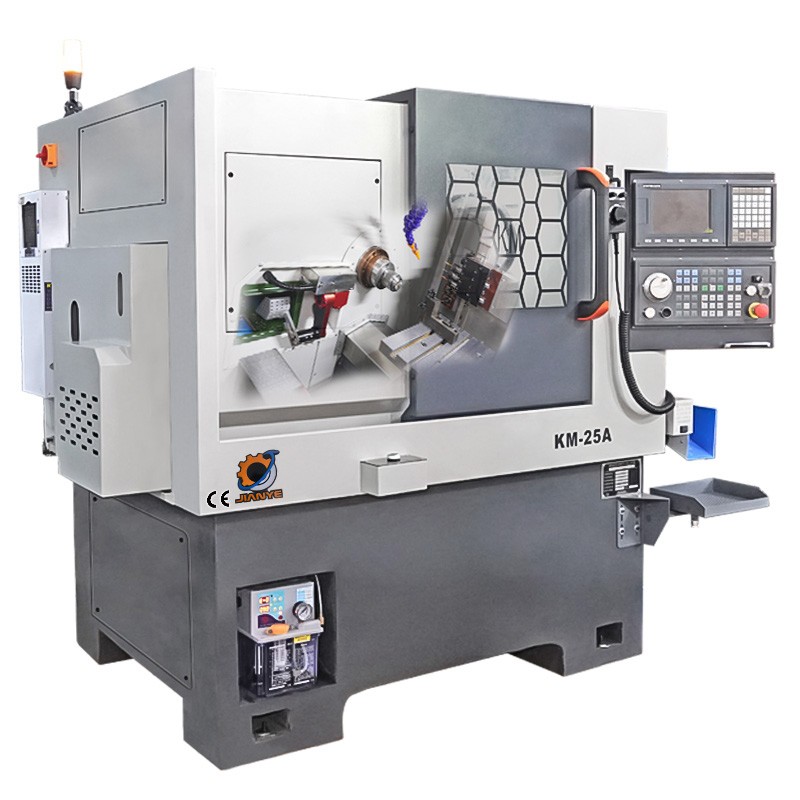

| Model | KM-20A | KM-25A |
| Machining diameter | 1-20mm | 2-25mm |
| Max. machining length | 180mm(Add center stand) | 120-150mm |
| Spindle speed | 50-5000r/min | 50-5000r/min |
| X/Z travel | 500/240mm | 600/180mm |
| X/Z feed rate | 18/20M/min | 18/22M/min |
| tool post | 8pcs | 8 pcs |
| Air pressure | 0.4-0.6 Mpa | 0.4-0.6 Mpa |
| Main motor | 2.2kW | 2.2-3.0 kW |
| Machine size | 1200×900×1500mm | 1300×1000×1500mm |
| Machine weight | 800kg | 1200kg |
| Model | KM-20A | KM-25A |
| Machining diameter | 1-20mm | 2-25mm |
| Max. machining length | 180mm(Add center stand) | 120-150mm |
| Spindle speed | 50-5000r/min | 50-5000r/min |
| X/Z travel | 500/240mm | 600/180mm |
| X/Z feed rate | 18/20M/min | 18/22M/min |
| tool post | 8pcs | 8 pcs |
| Air pressure | 0.4-0.6 Mpa | 0.4-0.6 Mpa |
| Main motor | 2.2kW | 2.2-3.0 kW |
| Machine size | 1200×900×1500mm | 1300×1000×1500mm |
| Machine weight | 800kg | 1200kg |
Standard :
SYNTEC 6TA control system
Yaskawa X/Z axis servo motor
Spindle servo motor
Air pressure collet
8 pcs tool post
Cooling pump
Automatic lubrication
Chip car
Optional :
SYNTEC 22TB control system
Fly cutter head
Power head(30000rpm,800W)
Bar feeder
Hydraulic chuck
SYNTEC 6TA control system
Yaskawa X/Z axis servo motor
Spindle servo motor
Air pressure collet
8 pcs tool post
Cooling pump
Automatic lubrication
Chip car
Optional :
SYNTEC 22TB control system
Fly cutter head
Power head(30000rpm,800W)
Bar feeder
Hydraulic chuck
