WNM1510 CNC Grinder Center

WNM1510 CNC Grinder Center

INQUIRY
WNM1510 CNC Grinder Center

●This machine can grind cylindrical, inner hole, thread,taper for complex precision workpiece.

●3- station turntable can change different grinding wheel to finish complex process.

●2th development user friendly interface will be easy setting program through drawing.

Get an offer
PRODUCT INTRODUCTION
  • FEATURES
  • TECHNICAL SPECIFICATION
  • CONFIGURATION
  • SAMPLE MACHINING

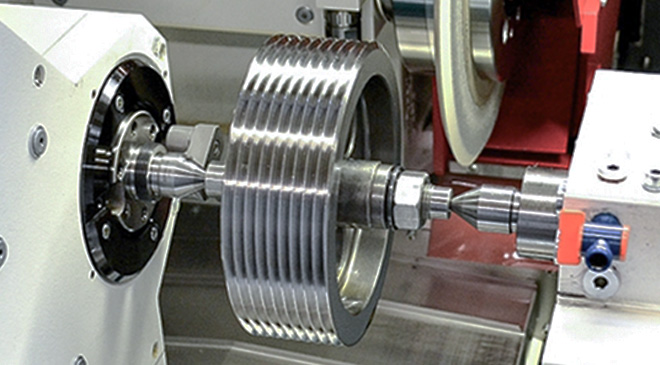

3- station turntable(B axis) with different wheel

3- station turntable(B axis) with different wheel

Forming wheel with rapid grinding

Forming wheel with rapid grinding

Automatic position probeAutomatic position probe

Dressing for wheel

Dressing for wheel






[youtube]mpVc76jcPGU[/youtube]



Specification
WNM1510
CapacityMax. grinding diametermm350
Max. Grinding length(external thread)mm1000
Grinding internal diametermmΦ15-Φ150
External thread grinding diametermmΦ10-Φ300
Helix angle
+-25º（optional A1/A2 axis +-15º）
Headstock Spindle speed rpm0～100
Drive torqueNm300
Wheelhead 1 (external thread)wheel size (OD*W*ID)mmΦ500×10~20×Φ203
Spindle speed rpm50-300
spindle powerKw7.5
Wheelhead 2 (internal)Spindle speed rpm24000
Spindle powerKw11
Wheel dresserDressing spindle speed rpm6000
Dressing spindle powerKw1
B axis turntable Angle range
360°
Direction
CW / CCW
TravelX/Z axis travelmm400/1150
Rapid feed X/Zm/min8/10
OtherTotal powerKW45
WeightT15
Machine Size(L×W×H)mm4400/3000/3000


Specification
WNM1510
CapacityMax. grinding diametermm350
Max. Grinding length(external thread)mm1000
Grinding internal diametermmΦ15-Φ150
External thread grinding diametermmΦ10-Φ300
Helix angle
+-25º（optional A1/A2 axis +-15º）
Headstock Spindle speed rpm0～100
Drive torqueNm300
Wheelhead 1 (external thread)wheel size (OD*W*ID)mmΦ500×10~20×Φ203
Spindle speed rpm50-300
spindle powerKw7.5
Wheelhead 2 (internal)Spindle speed rpm24000
Spindle powerKw11
Wheel dresserDressing spindle speed rpm6000
Dressing spindle powerKw1
B axis turntable Angle range
360°
Direction
CW / CCW
TravelX/Z axis travelmm400/1150
Rapid feed X/Zm/min8/10
OtherTotal powerKW45
WeightT15
Machine Size(L×W×H)mm4400/3000/3000


Standard Configuration:
Siemens 828D control system
Siemens X/Z axis motor and driver
External grinding spindle
Internal grinding spindle
3-station turntable(B axis)
X/Z/C axis encoder
Cutting fluid filtration system
Oil cooler of spindle
Compressed air dryer
Oil mist collector
Manual tailstock
OPTIONAL CONFIGURATION：
Grinding wheel balancing system
OD measurement device
End face position probe

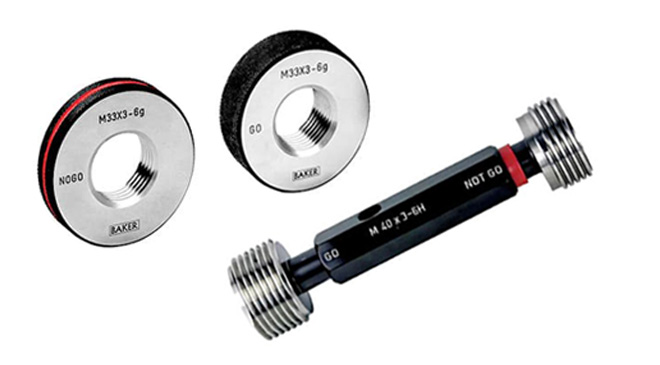

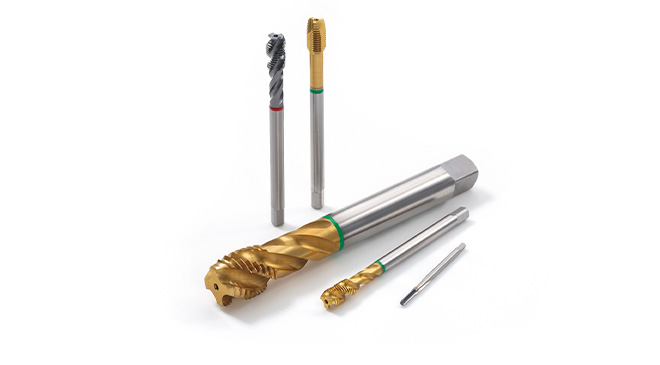

Thread Plug Ring GaugesTaps

                                                                           Thread Roller
