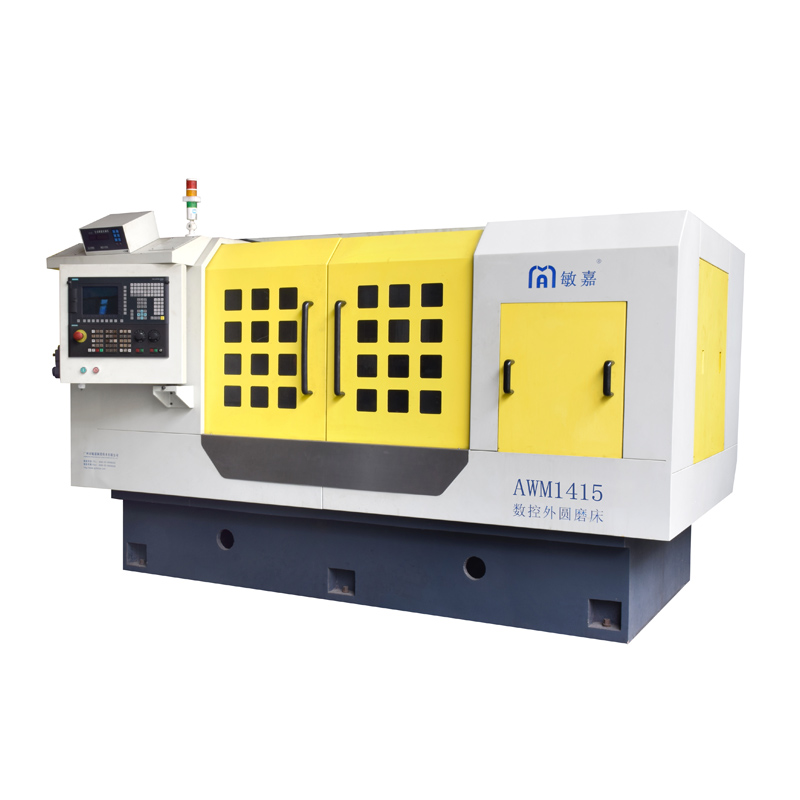

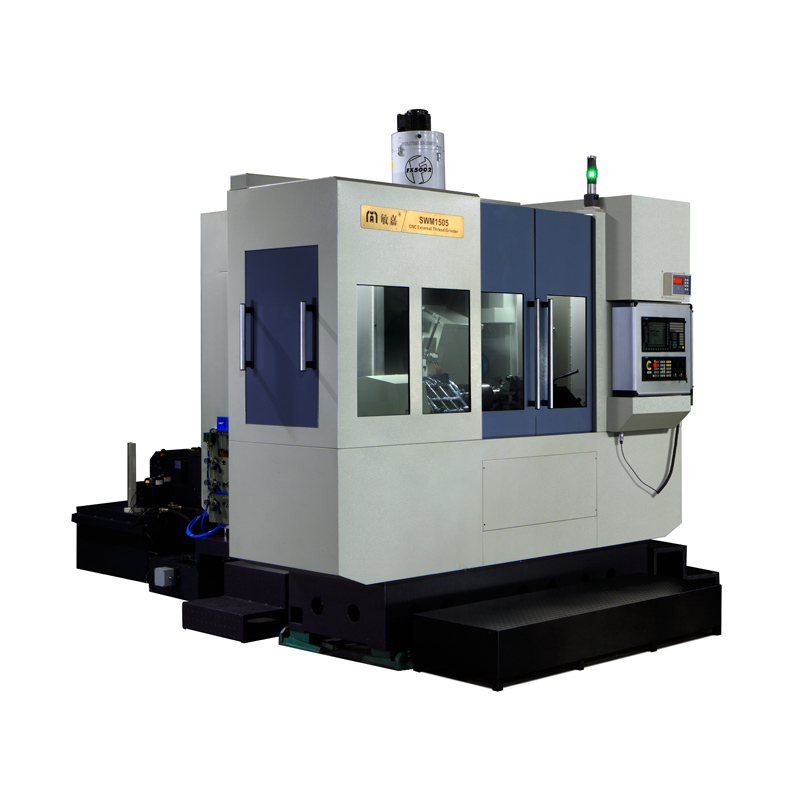

●The machine can grind cylindrical and step for shaft.
●Grinding roundness 2/0.8μm as different customized choice.
●X/Z axis Interpolation way can grinding some taper.
PRODUCT INTRODUCTION

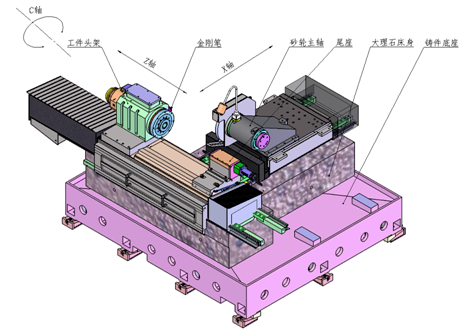

- FEATURES
- TECHNICAL SPECIFICATION
- CONFIGURATION
- SAMPLE MACHINING

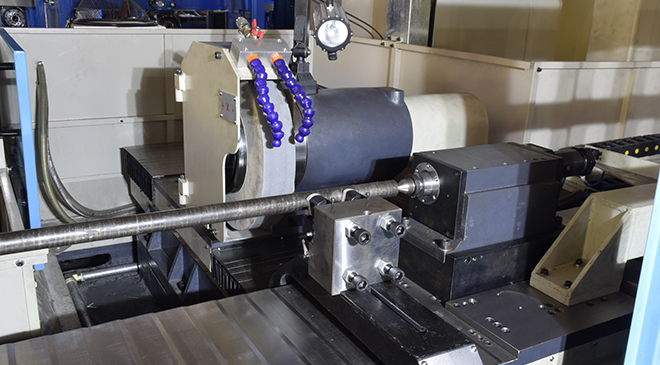

Max processing length is 2 meters |

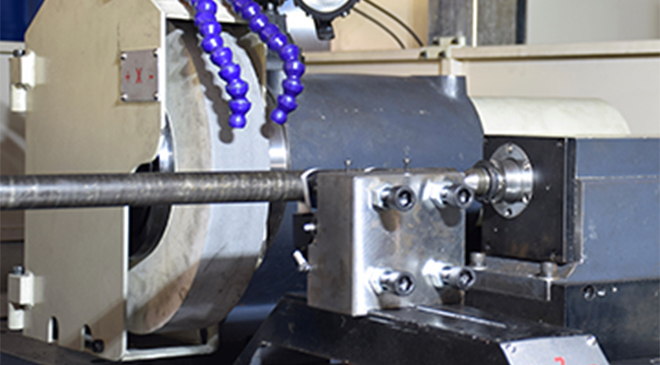

High rigidity fixture |

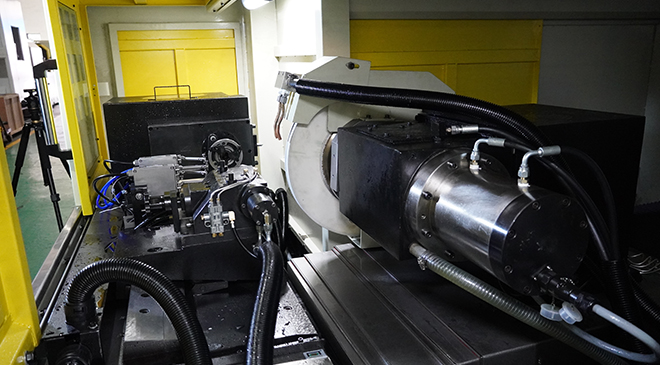

High-strength and efficient workholding fixture |

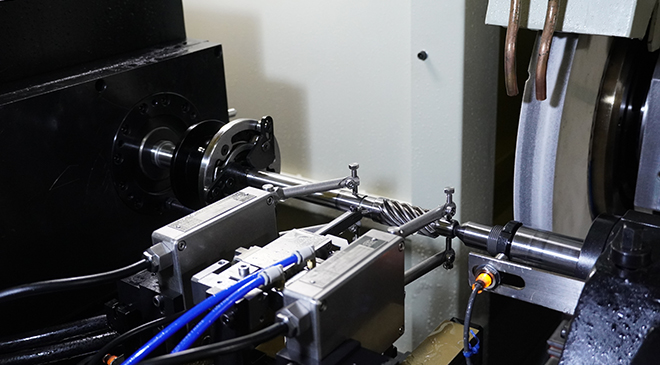

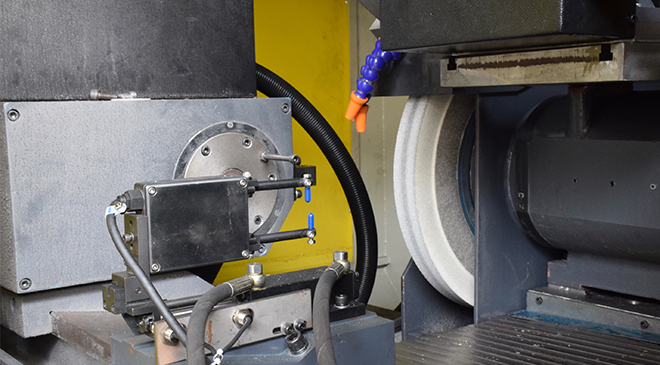

Automatic measuring instrument |
| Model | AWM1503 | AWM1510 | AWM1515 | AWM1505A | |
| Capacity | |||||
| Height of center | mm | 125 | 125 | 230 | 125 |
| Max.grinding diameter | mm | 200 | 220 | 220 | 100 |
| Max. workpiece weight | kg | 120 | 150 | 150 | 25 |
| Max.grinding length | mm | 300 | 1000 | 1500 | 500 |
| Spindle | |||||
| Grinding wheel size(OD×W×ID) | mm | Φ500×50×Φ203 | Φ450~600×63×Φ305 | Φ450~600×63×Φ305 | Φ450~600×63×Φ305 |
| Power of grinding spindle | kW | 7.5 | 7.5 | 15 | 5.5 |
| Max Speed of grinding wheel | rpm | 5000 | 3000 | 3000 | 3000 |
| Max. tailstock sleeve travel | mm | 30 | 40 | 40 | 40 |
| Travel | |||||
| Max. X axis travel | mm | 300/500 | 300/1000 | 210/1500 | 260/650 |
| X/Z axis rapid feed | m/min | 12 | 12 | 12 | 10 |
| Others | |||||
| Machining accuract (Grinding roundness) | μm | 2 | 2 | 2 | 0.8 |
| Machine size(L×W×H) | mm | 3800×3300×2200 | 4000×2000×1800 | 4600×2000×1800 | 2000×1600×1900 |
| Weight | kg | 6000 | 7000 | 8000 | 6200 |
| Model | AWM1503 | AWM1510 | AWM1515 | AWM1505A | |
| Capacity | |||||
| Height of center | mm | 125 | 125 | 230 | 125 |
| Max.grinding diameter | mm | 200 | 220 | 220 | 100 |
| Max. workpiece weight | kg | 120 | 150 | 150 | 25 |
| Max.grinding length | mm | 300 | 1000 | 1500 | 500 |
| Spindle | |||||
| Grinding wheel size(OD×W×ID) | mm | Φ500×50×Φ203 | Φ450~600×63×Φ305 | Φ450~600×63×Φ305 | Φ450~600×63×Φ305 |
| Power of grinding spindle | kW | 7.5 | 7.5 | 15 | 5.5 |
| Max Speed of grinding wheel | rpm | 5000 | 3000 | 3000 | 3000 |
| Max. tailstock sleeve travel | mm | 30 | 40 | 40 | 40 |
| Travel | |||||
| Max. X axis travel | mm | 300/500 | 300/1000 | 210/1500 | 260/650 |
| X/Z axis rapid feed | m/min | 12 | 12 | 12 | 10 |
| Others | |||||
| Machining accuract (Grinding roundness) | μm | 2 | 2 | 2 | 0.8 |
| Machine size(L×W×H) | mm | 3800×3300×2200 | 4000×2000×1800 | 4600×2000×1800 | 2000×1600×1900 |
| Weight | kg | 6000 | 7000 | 8000 | 6200 |
STANDARD CONFIGURATION:
Siemens 828D control system.
External grinding wheel spindle
Cooling system.
Automatic lubrication system.
Air condition cabinet
Oil mist absorber
Compressed air dryer
Cutting fluid filtration system
Manual Tailstock
Diameter measuring instrument
Surface measuring instrument
