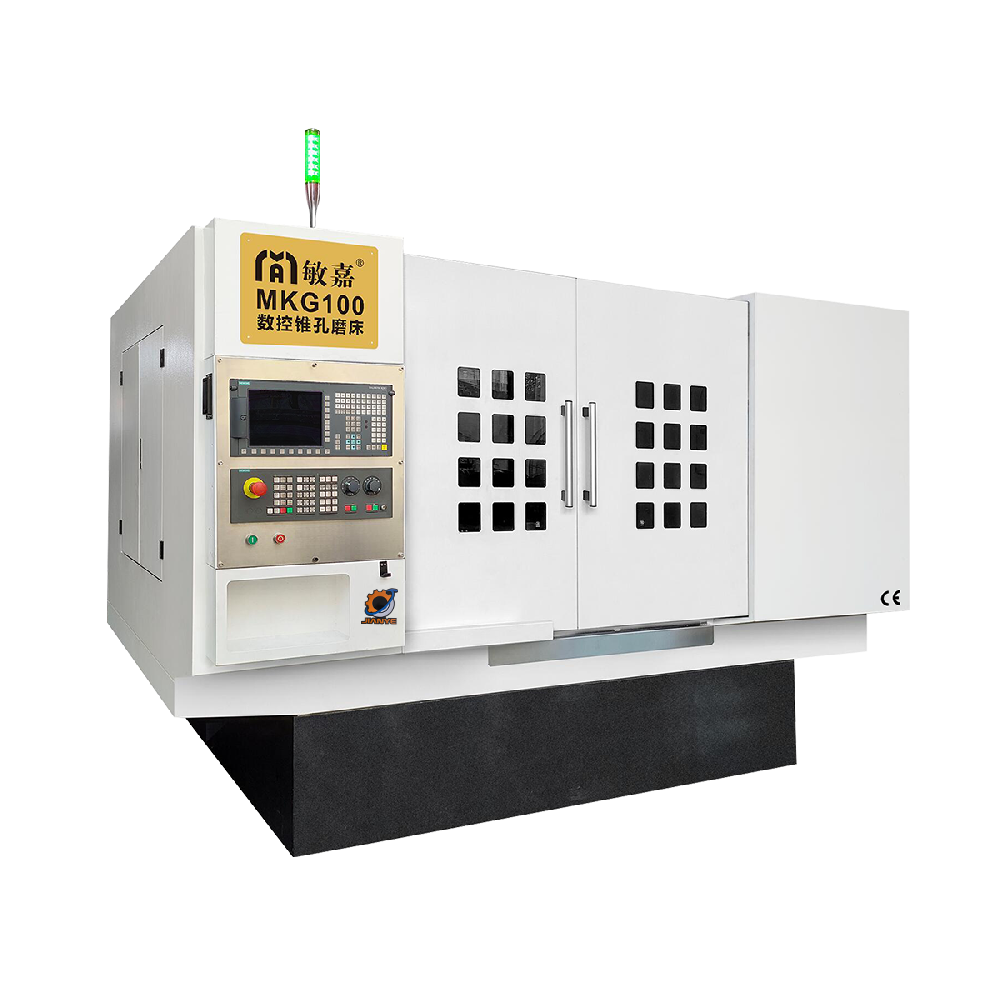

●Grinding excircle, inner hole, end face with complex process .
●When dresser finish the grinding wheel dressing ,wheel allowance and offset automatically .
PRODUCT INTRODUCTION
- FEATURES
- TECHNICAL SPECIFICATION
- CONFIGURATION
- SAMPLE MACHINING

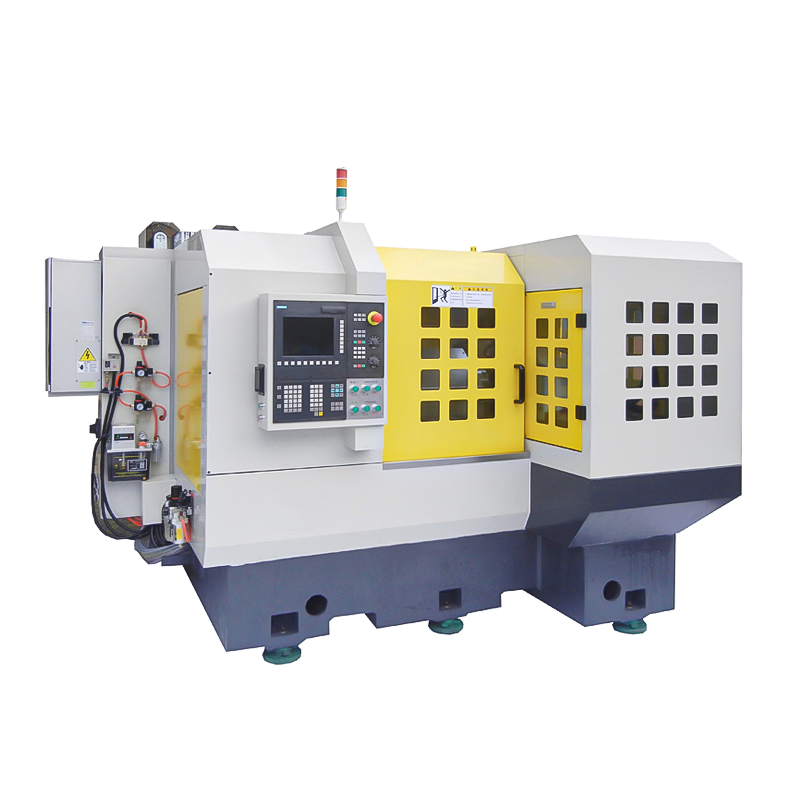

Machine structure |

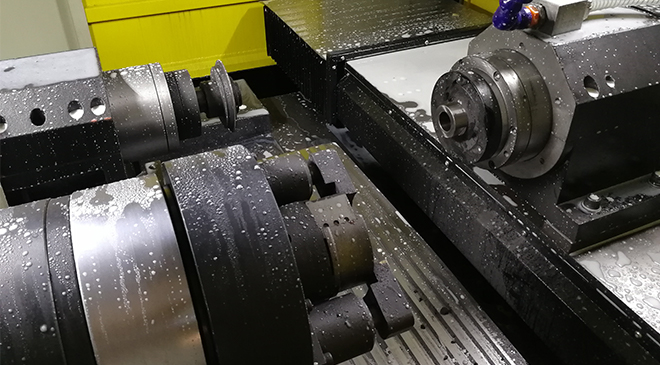

Internal and external complex grinding |
Natural granite bed improve manufacturing accuracy. |

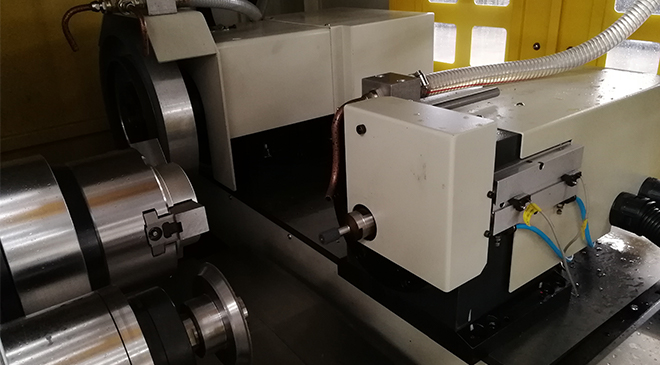

Dressing wheel |
| Item | Unit | AMK204 | |
| Capacity | Diameter of grinding inner hole | mm | φ10~φ100 |
| Max.grinding inner hole length | mm | 150 | |
| Diameter of grinding excircle | mm | φ200 | |
| Length of grinding excircle | mm | 150 | |
| Accuracy | Dimensions tolerance | mm | 0.005 |
| Roundness | mm | 0.005 | |
| surface roughness | μm | Ra≤0.4 | |
| Diamond grinding wheel spindle | Size of inner hole diamond grinding wheel | um | φ100×φ25×30 |
| Max. speed of diamond grinding wheel | rpm | 10000 | |
| Spindle | Speed of workpiece spindle | rpm | 0~100 |
| Power of workpiece motor spindle | KW | 11 | |
| Speed of external and end face grinding wheel | rpm | 500~3000 | |
| Size of external grinding wheel | mm | φ350×32×φ127 | |
| Max. speed of inner hole grinding wheel | rpm | 24000 | |
| Travel | X/Z axis travel | mm | 600/300 |
| Other | Weight | KG | 6200 |
| Machine size | mm | 3100×2000×2400 | |
| Item | Unit | AMK204 | |
| Capacity | Diameter of grinding inner hole | mm | φ10~φ100 |
| Max.grinding inner hole length | mm | 150 | |
| Diameter of grinding excircle | mm | φ200 | |
| Length of grinding excircle | mm | 150 | |
| Accuracy | Dimensions tolerance | mm | 0.005 |
| Roundness | mm | 0.005 | |
| surface roughness | μm | Ra≤0.4 | |
| Diamond grinding wheel spindle | Size of inner hole diamond grinding wheel | um | φ100×φ25×30 |
| Max. speed of diamond grinding wheel | rpm | 10000 | |
| Spindle | Speed of workpiece spindle | rpm | 0~100 |
| Power of workpiece motor spindle | KW | 11 | |
| Speed of external and end face grinding wheel | rpm | 500~3000 | |
| Size of external grinding wheel | mm | φ350×32×φ127 | |
| Max. speed of inner hole grinding wheel | rpm | 24000 | |
| Travel | X/Z axis travel | mm | 600/300 |
| Other | Weight | KG | 6200 |
| Machine size | mm | 3100×2000×2400 | |
STANDARD CONFIGURATION:
Siemens828D control system
Grinding wheel spindle 1 (cylindrical)
Grinding wheel spindle 2 (Inner hole).
Compressed air drying device.
Closed-loop control device.
Oil mist absorber
Automatic lubrication system.
Cutting fluid filtration device.
Dresssing unit
Automatic tool setting probe
Siemens828D control system
Grinding wheel spindle 1 (cylindrical)
Grinding wheel spindle 2 (Inner hole).
Compressed air drying device.
Closed-loop control device.
Oil mist absorber
Automatic lubrication system.
Cutting fluid filtration device.
Dresssing unit
Automatic tool setting probe
