The machine design for use in automative industry ,precision component manufacturing.
AL500T CNC Lathe Machine

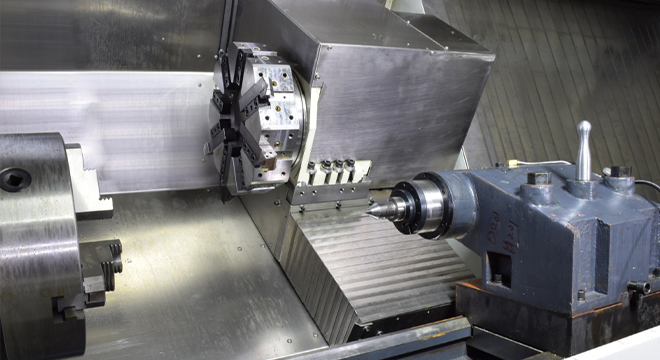

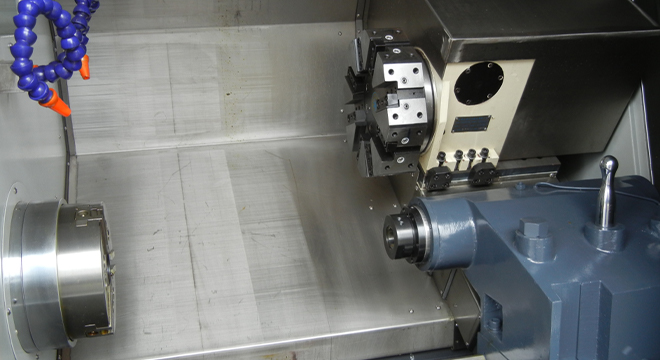

Slant Bed with turret INQUIRY ●It is high rigidity 45°slanted casting bed and triangle headstock for user-friendly design.
●Two axis move by the linear guideway.
●High-power servo spindle motor.
●Suitable for mass production of the disc and sleeve for the coarse and fine processing.

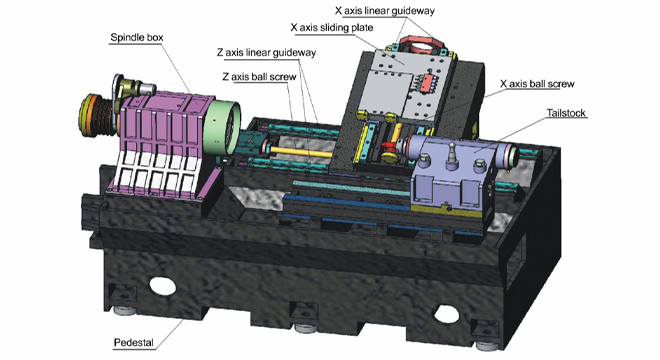

Machine tool structure diagram |

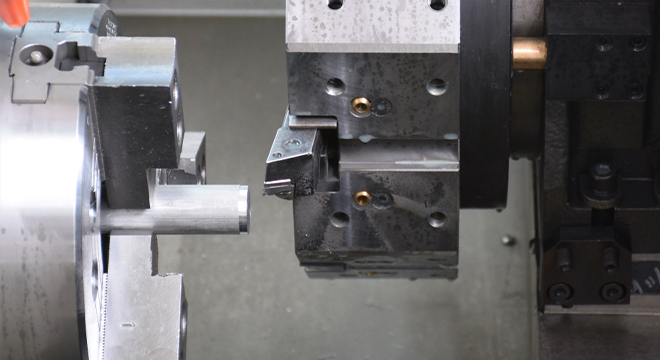

Heavy cutting by turret |
|
|
| Model | AL500T | AL750T | AL1000T | AL1500T | |
| Capacity | |||||
| Max. turning diameter over bed | mm | Φ500 | Φ500 | Φ500 | Φ500 |
| Max. turning diameter over support | mm | Φ220 | Φ220 | Φ220 | Φ220 |
| Max. machining length | mm | 500 | 750 | 1000 | 1500 |
| Spindle | |||||
| Spindle bore without draw-tube | mm | Φ62 | Φ62 | Φ62 | Φ62 |
| Spindle bore with draw-tube | mm | Φ52 | Φ52 | Φ52 | Φ52 |
| Max. spindle speed | rpm | 3500 | 3500 | 3500 | 3500 |
| Power of spindle motor | kW | 11 | 11 | 11 | 11 |
| Travel | |||||
| X/Z axis motor | Nm | 10/15 | 10/15 | 10/15 | 10/15 |
| X/Z axis rapid feed | m/min | 18 | 18 | 18 | 18 |
| X/Z axis travel | mm | 200/500 | 200/750 | 200/1000 | 200/1500 |
| X/Z axis positioning accuracy | mm | 0.016/0.022 | 0.016/0.022 | 0.016/0.022 | 0.016/0.022 |
| X/Z axis repeatability positioning accuracy | mm | 0.006 | 0.006 | 0.006 | 0.006 |
| Tool | |||||
| Number of tool | Qty | 8 | 8 | 8 | 8 |
| Size of tool | mm | 25×25/Φ30 | 25×25/Φ30 | 25×25/Φ30 | 25×25/Φ30 |
| Tailstock | |||||
| Tailstock taper | MT4 | MT4 | MT4 | MT4 | |
| Tailstock travel | mm | 550 | 690 | 1050 | 1650 |
| Sleeve travel | mm | 125 | 125 | 125 | 125 |
| Others | |||||
| Hydraulic chuck | inch | 8 | 8 | 8 | 10 |
| Total power | kW | 20 | 20 | 20 | 20 |
| Weight | kg | 4000 | 4200 | 5800 | 6500 |
| Machine size(L×W×H) | mm | 2500×1600×1800 | 2900×1600×1900 | 3200×1600×1900 | 3700×1600×1900 |
| Model | AL500T | AL750T | AL1000T | AL1500T | |
| Capacity | |||||
| Max. turning diameter over bed | mm | Φ500 | Φ500 | Φ500 | Φ500 |
| Max. turning diameter over support | mm | Φ220 | Φ220 | Φ220 | Φ220 |
| Max. machining length | mm | 500 | 750 | 1000 | 1500 |
| Spindle | |||||
| Spindle bore without draw-tube | mm | Φ62 | Φ62 | Φ62 | Φ62 |
| Spindle bore with draw-tube | mm | Φ52 | Φ52 | Φ52 | Φ52 |
| Max. spindle speed | rpm | 3500 | 3500 | 3500 | 3500 |
| Power of spindle motor | kW | 11 | 11 | 11 | 11 |
| Travel | |||||
| X/Z axis motor | Nm | 10/15 | 10/15 | 10/15 | 10/15 |
| X/Z axis rapid feed | m/min | 18 | 18 | 18 | 18 |
| X/Z axis travel | mm | 200/500 | 200/750 | 200/1000 | 200/1500 |
| X/Z axis positioning accuracy | mm | 0.016/0.022 | 0.016/0.022 | 0.016/0.022 | 0.016/0.022 |
| X/Z axis repeatability positioning accuracy | mm | 0.006 | 0.006 | 0.006 | 0.006 |
| Tool | |||||
| Number of tool | Qty | 8 | 8 | 8 | 8 |
| Size of tool | mm | 25×25/Φ30 | 25×25/Φ30 | 25×25/Φ30 | 25×25/Φ30 |
| Tailstock | |||||
| Tailstock taper | MT4 | MT4 | MT4 | MT4 | |
| Tailstock travel | mm | 550 | 690 | 1050 | 1650 |
| Sleeve travel | mm | 125 | 125 | 125 | 125 |
| Others | |||||
| Hydraulic chuck | inch | 8 | 8 | 8 | 10 |
| Total power | kW | 20 | 20 | 20 | 20 |
| Weight | kg | 4000 | 4200 | 5800 | 6500 |
| Machine size(L×W×H) | mm | 2500×1600×1800 | 2900×1600×1900 | 3200×1600×1900 | 3700×1600×1900 |

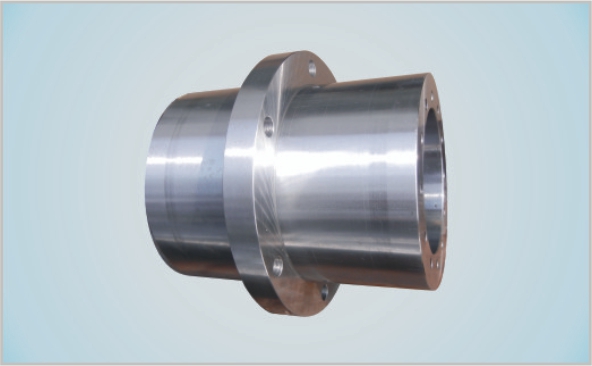

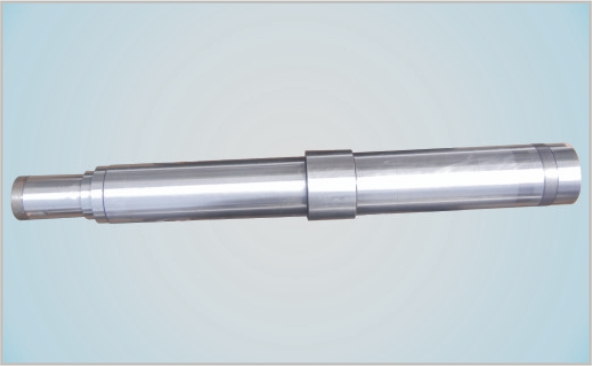

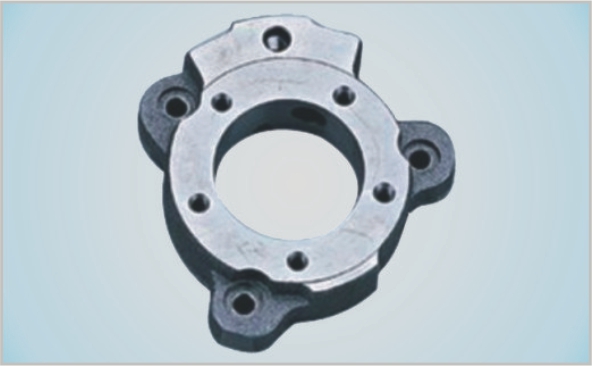

sample-1
