September 5, 2026

Category: Product Innovation / Automotive Manufacturing / Case Study

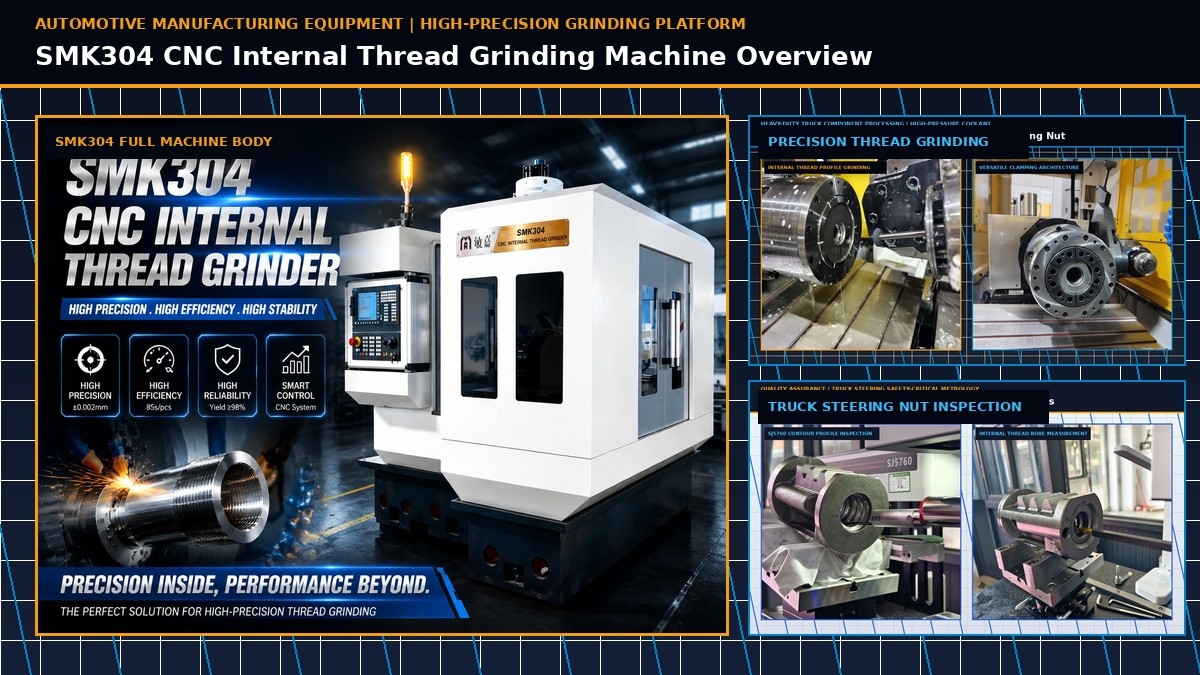

Following nearly a year of close engineering collaboration and hardware optimization, JIANYE UNITY has successfully deployed a tailored SMK304 CNC Internal Thread Grinding Machine specifically optimized for heavy-duty truck steering nut structures. Designed as a high-performance alternative to European machinery, the re-engineered SMK304 integrates quick-change collet workholding, upgraded grinding and workpiece spindles, and an optimized coolant system. It handles complex steering nut geometries across multiple sizes with sub-micron precision, reducing machinery acquisition costs by approximately 50% compared to equivalent European models.

1. Conquering the Machining Bottlenecks of Truck Steering Nuts

Heavy-duty truck steering nuts are safety-critical components that demand ultra-precise internal thread profiles and exceptional surface finish to endure extreme operational loads. Machining these heavy, complex internal thread geometries typically requires costly specialized European grinding platforms, presenting high equipment investment barriers for automotive component suppliers.

To overcome these cost and operational hurdles, JIANYE UNITY worked hand-in-hand with end-user engineers to adapt the SMK304 CNC Internal Thread Grinder specifically for heavy-duty truck steering nut manufacturing.

Figure 1: Customized quick-change collet system engineered on the SMK304 workhead for steering nut structures.

2. Technical Upgrades Built for Steering Nut Production

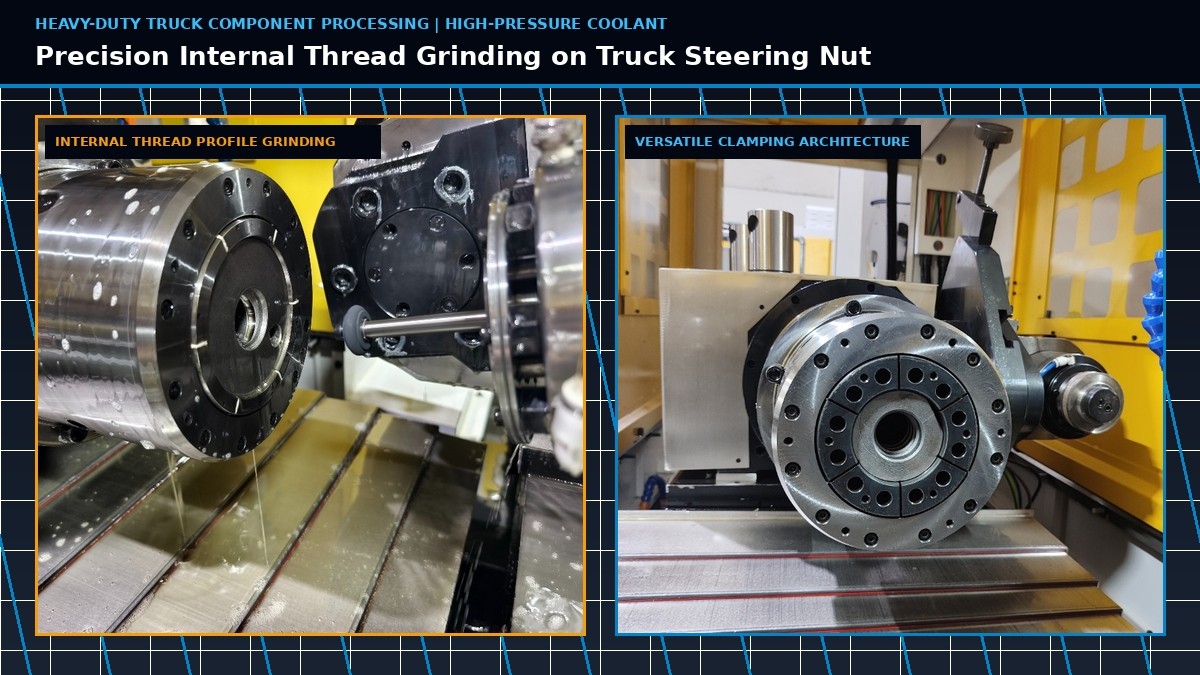

Figure 2: Real-time internal thread grinding on a heavy-duty steering nut with high-pressure coolant flushing.

1️⃣ Universal Quick-Change Collets for Multi-Size Steering Nuts

• Flexible Clamping Architecture: Developed a specialized custom fixture that accepts different collet sizes.

• Seamless Size Switching: Operators can change collets directly to accommodate various dimensions of truck steering nuts without replacing the complete fixture body, minimizing setup downtime.

2️⃣ Heavy-Duty Spindle & Grinding Quill Overhaul

• Upgraded Spindle Rigidity: Fitted with high-torque grinding and workpiece spindle assemblies to handle heavy cutting forces required for tough automotive alloys.

• Optimized Grinding Quills: Custom-matched grinding quills and grinding wheel formulations guarantee sub-micron thread pitch accuracy and prolonged tool life.




3️⃣ High-Efficiency Coolant Delivery System

• Thermal Control: Redesigned coolant channels spray directly into the deep internal thread bore of the steering nut, eliminating thermal distortion during continuous batch production.

3. Proven Advantage over European Internal Thread Grinders

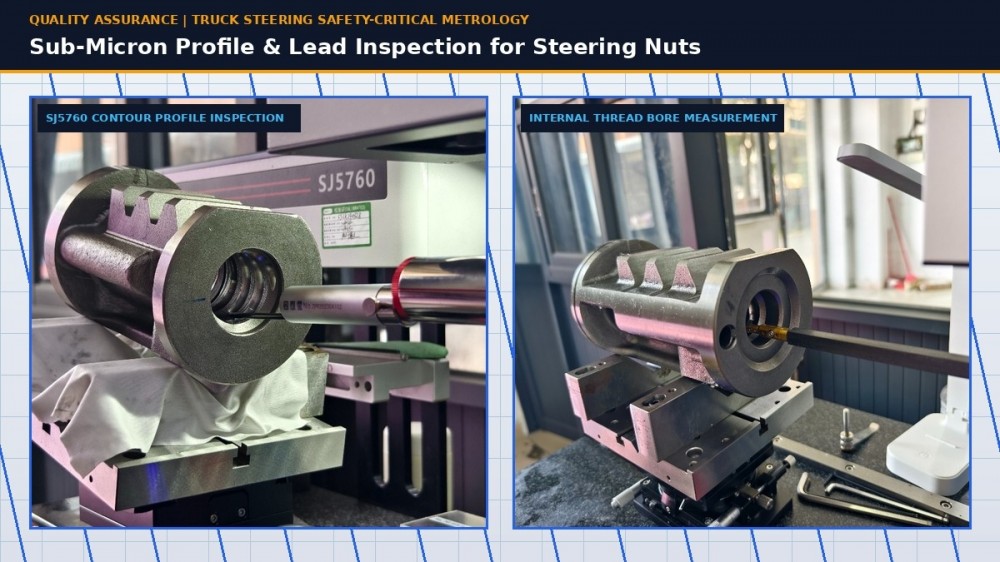

Figure 3: Metrology inspection verifying thread profile, lead accuracy, and surface finish on heavy-duty truck steering nuts.

Compared to traditional European grinding machinery (such as European Doimak internal thread grinders), the customized SMK304 offers distinct competitive advantages for commercial vehicle component suppliers:

• Superior Workpiece Versatility: Rapidly adapts to various truck steering nut designs via simple collet changeovers.

• Over 50% Equipment Cost Savings: Cuts capital expenditure by more than 50% compared to equivalent European machines while fully meeting stringent automotive quality standards.

• Tailored Production Fit: Deep custom engineering ensures seamless integration into automated steering system manufacturing lines.

About JIANYE UNITY

(JIANYE UNITY CO., LTD.) is a leading provider of high-precision CNC machinery and custom thread grinding solutions. By pairing engineering flexibility with cost-effective manufacturing, JIANYE UNITY empowers global commercial vehicle, aerospace, and precision machinery manufacturers.
